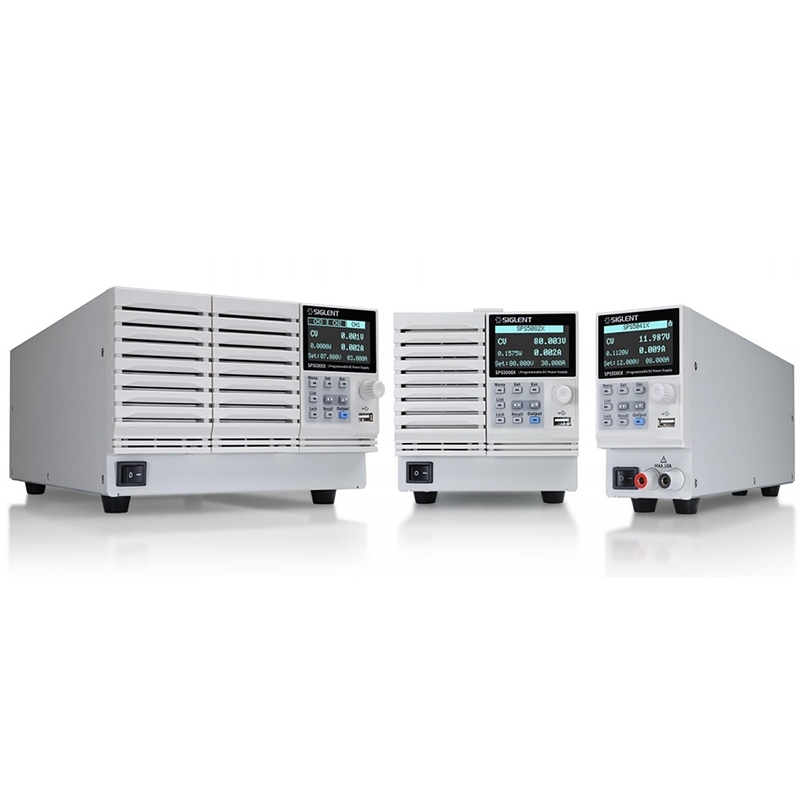

시글런트 전원공급기
(DC파워서플라이) SPS5165X

공유
짧은설명
SMPS type, 2채널, 160V/7.5A/1080W, 2.4-inch, 1mV/1mA
정가
5,035,000
판매가
4,532,000
배송비
0원 조건별배송 지역별추가배송비
 /
방문 수령지 : 서울특별시 구로구 디지털로 288 (대륭포스트타워1차) 1404
모델명
SPS5165X
제조사
SIGLENT
원산지
CHINA
시글런트 전원공급기
(DC파워서플라이) SPS5165X
0
총 상품금액
총 할인금액
총 합계금액

상품상세정보


카다로그 & 매뉴얼







글런트 전원공급기(DC파워서플라이) SPS5165X




* 이미지는 참조용으로만 사용하십시오. 제품사양을 참조하세요





주요특징 및 기능


주요 스펙
•     Rated Output Voltage:40V, 50V, 80V, 160V
•     Rated Output Power:180W, 360W, 720W, 1080W
•     Wide range of output voltage and current, high efficiency power supply
•     CV, CC priority mode selection, better protection of equipment under test
•     Configurable three-channel timing output
•     170° wide viewing angle OLED screen, remote web control



제품소개

Multi-combination output

The SPS5000X series includes a variety of output voltages (40V, 50V, 80V, 160V) and current combinations (7.5A~90A),

and the rated output power includes 180W, 360W, 720W, and 1080W. The single-channel model can support up to 2 units in series

and 3 units in parallel, and the dual-channel and three-channel models can also support series-parallel connection between channels.






Constant Output Power

In constant output power mode, the voltage and current range is switched automatically to maximize the voltage and

current without sacrificing the supply's output power. This mode enables the supply to provide a higher output voltage

at lower current and a higher output current at lower voltage. Compared to the traditional rectangular output range

of most supplies, the SPS5000X series power supply provides a wider voltage and current output range, which greatly increases

the utilization of the power supply.




LIST timing output

The SPS5000X series supports up to three channels and up to 50-step timing output. The user can

set the timing output parameters on the front panel of the machine, or use the remote web control

function for faster and more convenient settings. Under the LIST function, you can set the output current,

voltage, output delay time, duration, rise and fall slope and other parameters.
